Why Are Gate Valves Critical for Lockout-Tagout Procedures in Quebec?

For any health and safety manager in Quebec, the term lockout-tagout (LOTO) is synonymous with worker protection. The image of a lock on an energy-isolating device is a powerful symbol of safety. However, a dangerous complacency can arise from focusing solely on the lock and the procedure, while ignoring the physical device it is attached to. When that device is a valve, its internal condition and design are the true arbiters between a safe work environment and a potential catastrophe. The reality is that not all valves are created equal, and in the high-stakes world of industrial maintenance, the integrity of a LOTO procedure rests entirely on the valve’s ability to achieve what is known as positive isolation.

The standard approach often stops at verifying that a valve is closed and a lock is in place. But what if the valve is passing fluid internally despite being in the “closed” position? What if the stem is so seized that it cannot be fully operated, or if a well-intentioned but misguided attempt to fix a minor leak compromises the entire system? These are not hypothetical scenarios; they are recurring factors in workplace accidents investigated by the CNESST. The legal and moral obligation of a supervisor is to ensure a verifiable zero-energy state, a condition that is physically impossible if the isolation valve itself is compromised.

This guide moves beyond the platitudes of “following the procedure.” We will dissect the engineering and regulatory realities that make the gate valve a central pillar of LOTO safety in Quebec. The critical question is not “Is it locked out?” but rather, “Does this valve, in its current mechanical state, truly and verifiably isolate the energy source?” This article will provide the technical criteria to answer that question, examining the fundamental differences in valve design, common failure modes, and the specific provincial regulations that dictate when a valve must be declared unfit for service. We will explore how to identify and manage these critical assets to ensure your LOTO program is not just a paper exercise, but a robust barrier against fatal risk.

To navigate these critical safety considerations, this article is structured to address the most pressing questions a Quebec safety manager faces regarding valve integrity in LOTO procedures. The following sections provide a detailed roadmap for ensuring compliance and, more importantly, protecting your teams.

Vanne à guillotine vs papillon : laquelle garantit l’étanchéité totale pour la sécurité ?

The foundational choice in ensuring positive isolation is the selection of the valve itself. While both gate (à guillotine) and butterfly (papillon) valves can stop flow, their mechanical designs have profound implications for safety-critical lockout applications. A gate valve operates with a linear motion, lowering a solid gate to completely obstruct the flow path. This design, particularly in a double-block-and-bleed (DBB) configuration, is engineered to provide a robust, verifiable seal against pressure from both ends of the valve. This is the essence of achieving a true zero-energy state, as it physically prevents upstream pressure from reaching the work area. The cavity between the two seats in a DBB gate valve can also be bled off, providing tangible proof of isolation.

In contrast, a butterfly valve uses a quarter-turn disc to seal against a soft seat. While effective for flow control, this single-seal design can be susceptible to degradation, wear, and passing fluid, especially under high pressure or with abrasive media. For LOTO, relying on a butterfly valve may not satisfy the stringent requirements for positive isolation, as a degraded seal could allow hazardous energy to pass downstream. As detailed in this comparative analysis of valve configurations, the capabilities of different valve types under pressure are distinct.

Double Block and Bleed Configurations: Gate vs Butterfly Valves

Feature	Gate Valve DBB	Butterfly Valve DBB
Sealing Mechanism	Double-seated, linear travel design	Single-seal, quarter-turn design
API Definition Compliance	Provides seal against pressure from both ends	Limited bidirectional sealing capability
Zero Energy State Achievement	Complete isolation with visual confirmation	Potential for seal degradation under pressure
Cavity Pressure Relief	Natural bleed capability between seats	Requires external relief system
Quebec RSST Compliance	Meets positive isolation requirements	May require additional verification measures

For industries in Quebec like mining and pulp and paper, where slurry and corrosive chemicals are common, the superiority of gate valves for isolation is even more pronounced. The robust, metal-to-metal or protected-seat design of a gate valve is less prone to the kind of rapid degradation that can compromise the soft seats of butterfly valves, ensuring that “closed” truly means zero energy. Therefore, for any new installation or system upgrade intended for LOTO, specifying gate valves is a critical first step towards compliant and genuinely safe isolation.

Vanne bloquée : comment l’exercer sans briser la tige ni provoquer de fuite ?

An isolation valve that cannot be operated is as dangerous as one that leaks. A seized or “frozen” gate valve is a common problem in industrial settings, often due to corrosion, sediment buildup, or lack of regular cycling. The temptation to apply excessive force with a “cheater bar” or large wrench is a critical error that can lead to a sheared stem, a damaged handwheel, or a catastrophic failure of the valve body. Exercising a seized valve is a high-risk task that requires a strict, documented procedure, not brute force. The primary goal is to restore operation without compromising the valve’s mechanical integrity or causing a new leak at the packing gland.

The first step must always be a pre-task risk assessment (analyse de risques) as mandated by the CNESST. This assessment documents the valve’s condition and identifies alternative isolation points upstream should the attempt fail. Under no circumstances should force be the first option. The correct approach involves applying a quality penetrating oil to the valve stem threads and packing nut, allowing it to soak for a minimum of 24 hours. This gives the oil time to work its way into the corroded or seized components, reducing the torque required for movement. The use of non-sparking bronze or aluminum tools is also a mandatory safety measure in many Quebec industrial environments to prevent ignition hazards.

After the soaking period, attempt to work the valve back and forth in small increments rather than trying to open or close it in one motion. If the valve remains seized, the procedure must be aborted. The LOTO plan must be officially amended to use the next available upstream isolation point. This entire process, including the failed attempt and the switch to an alternative, must be meticulously documented to ensure compliance during any potential CNESST investigation. Attempting to force a seized valve is a gamble that risks a much larger, uncontrolled release of energy.

Comment identifier clairement chaque vanne pour éviter l’erreur fatale ?

In a complex industrial facility with hundreds of pipes and valves, a mistake in identification can be fatal. Locking out the wrong valve is one of the most catastrophic failures in a LOTO procedure, as it provides a false sense of security while leaving the work area fully energized. This is not a theoretical risk; inadequate hazard identification is a recurring theme in accident investigations. The tragic reality is underscored by recent statistics showing that Quebec recorded 246 workplace fatalities in 2024, an increase of 36 from the previous year. A robust, unambiguous valve identification system is a non-negotiable element of a compliant safety program.

A compliant system goes beyond simply having a number on a valve. It requires a multi-layered approach:

• Permanent Tagging: Each valve must have a permanently affixed, corrosion-resistant metal or high-grade plastic tag with a unique identification number. This number must correspond directly to the plant’s P&ID (Piping and Instrumentation Diagrams).
• System and Flow Indication: In addition to the ID number, the tag or adjacent piping should clearly indicate the system it belongs to (e.g., “STEAM,” “ACID,” “COMPRESSED AIR”) and the direction of flow. Color-coding pipes according to their contents is a highly effective best practice.
• P&ID Accessibility: Up-to-date and accurate P&IDs must be readily available to all personnel involved in LOTO procedures. Workers must be trained to locate the target valve on the diagram and then physically verify it in the field before applying any locks.
• The Role of Tagout: The tagout process is not secondary to the lockout; it is an integral part of it. As the Canadian Centre for Occupational Health and Safety (CCOHS) clarifies, this process is essential for clear communication.

Tag out is a labelling process that is always used when lockout is required

– Canadian Centre for Occupational Health and Safety, CCOHS Lockout/Tag out Guidelines

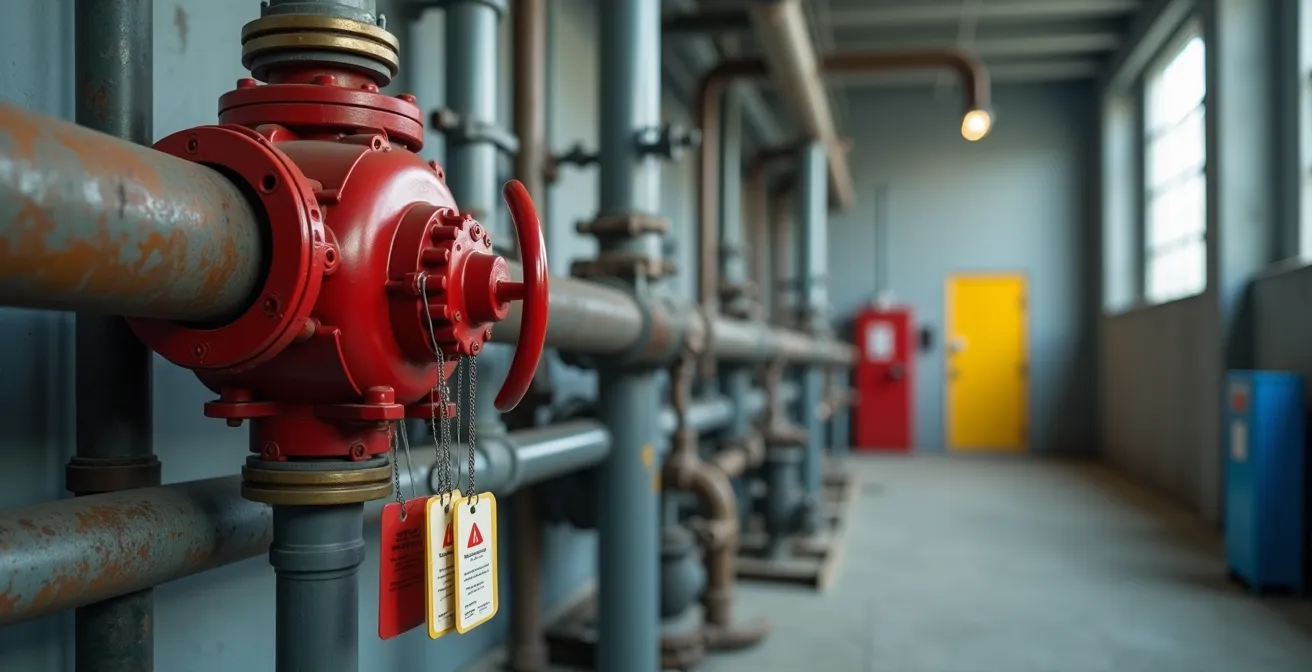

The lockout tag itself must contain specific information: the reason for the lockout, the date and time of application, and the name of the authorized employee who applied it. This ensures that anyone approaching the valve understands its status and who is in charge of the isolation. An error in identification is a failure of the entire safety system.

Fuite à la tige : comment resserrer le presse-étoupe en toute sécurité sous pression ?

The simple answer to this question is: you don’t. Attempting to tighten a packing nut (presse-étoupe) on a valve that is under pressure, even if it is part of an active LOTO, is a profound and dangerous violation of the zero-energy state principle. A common minor leak from the valve stem is often seen as a simple maintenance task, but treating it as such without proper isolation can lead to catastrophic failure. The force exerted by the system’s pressure on the valve stem is immense. Tightening the packing nut changes the stress distribution on the assembly and can cause a weakened or corroded stem to fail violently, ejecting from the valve body and causing a full-bore release of the system’s contents.

This is not a hypothetical risk. In Quebec, such actions have direct legal consequences for supervisors under the Act respecting occupational health and safety (LSST). A formal CNESST investigation can and will identify this action as a root cause of an accident. In fact, a 2020 CNESST investigation revealed that attempting to perform maintenance like tightening packing nuts on pressurized equipment directly contravenes the core tenets of safe work procedures, leading to preventable accidents with severe outcomes.

The only safe and compliant method for addressing a stem leak involves a separate, dedicated LOTO procedure specifically for the leaking valve itself. The system must be fully de-energized and depressurized, and this state must be verified with gauges and bleed valves before any tool is placed on the packing nut. The correct procedure is as follows:

• Never attempt adjustment on a valve under any form of pressure.
• Implement a full LOTO procedure upstream of the leaking valve to isolate it completely.
• Verify a zero-pressure state in the section containing the valve.
• Use a calibrated torque wrench to apply gentle, incremental tightening (typically no more than a one-quarter turn at a time) to the packing nuts, as per manufacturer specifications.
• During scheduled shutdowns, consider upgrading to modern live-loaded packing glands, which use spring pressure to maintain a constant seal and reduce the need for such adjustments.

A minor leak is a signal for planned, isolated maintenance, not for a risky on-the-fly repair.

Quand déclarer une vanne “non sécuritaire” et planifier son remplacement immédiat ?

A valve is not a permanent fixture; it is a consumable component with a finite service life. A crucial part of a robust safety program is having clear, objective criteria for declaring a valve “unsafe” and removing it from service. Continuing to use a compromised valve for LOTO is a negligent act that knowingly exposes workers to extreme risk. The decision to condemn a valve should not be subjective; it must be based on a formal inspection checklist aligned with Quebec’s LSST requirements. Any valve that fails these checks must be immediately red-tagged, taken out of service, and scheduled for replacement.

This proactive approach is fundamental to the mandate of the CNESST. Under current CNESST regulations, which are enforced by the organization formed in 2016 to promote occupational health and safety, employers have a direct responsibility to ensure that all equipment, including safety-critical devices like isolation valves, is maintained in a safe operating condition. A documented valve inspection and condemnation program is a key part of demonstrating this due diligence.

The Legal and Operational Impact of Non-Compliance

Failing to remove a demonstrably unsafe valve from service can have severe consequences. In the event of an incident, a CNESST investigation will scrutinize maintenance records and inspection logs. If it is found that a valve with known defects was used for a LOTO procedure that subsequently failed, significant penalties can be imposed on the organization and its management. Operationally, a single valve failure can lead to unplanned shutdowns, costly damages, and a complete loss of trust in the company’s safety culture. A clear condemnation protocol is therefore not just a best practice; it is an essential risk management strategy.

In addition to these physical checks, a valve’s maintenance history is a critical factor. Any valve that has a documented history of repeated failures, even if they were previously repaired, should be considered a candidate for proactive replacement.

Vanne à bille vs vanne à guillotine : laquelle fermera encore après 10 ans d’inactivité ?

For emergency shutoff or isolation valves that remain in one position for years, long-term reliability is paramount. The question is not just whether it can isolate flow today, but whether it can be operated successfully after a decade of static service, especially in Quebec’s demanding climate. Both ball valves (vanne à bille) and gate valves have vulnerabilities related to inactivity. Quebec’s notorious freeze-thaw cycles are a major stressor. Water ingress can lead to ice formation that jams rising stems on gate valves or damages the body of ball valves. Over time, scale, sediment, and product buildup can effectively cement a valve in place.

Ball valves, particularly full-port designs, often maintain better operability after long periods of dormancy for simple shutoff tasks. The quarter-turn action and the wiping motion of the ball against its seat can help to clear minor sediment. However, the cavity between the ball and the body is a known weak point. It can trap process fluid, which can then freeze and expand, potentially cracking the valve body or damaging the seals. Therefore, while often quicker to operate, they may harbor hidden risks if not specified correctly for the climate.

Gate valves, on the other hand, provide superior LOTO isolation with a clear visual confirmation via their rising stem, but they are more susceptible to seizing if not exercised. The long, multi-turn travel of the stem provides more surface area for corrosion and scale to build up. For this reason, a critical component of ensuring long-term reliability for a gate valve is a regular “exercising” program, where the valve is cycled from fully open to fully closed and back at least annually. This breaks up any incipient corrosion and verifies its operational readiness. For a valve designated for LOTO, a properly exercised gate valve offers a higher degree of verifiable isolation, whereas a full-port ball valve may offer better chances of simply closing in an emergency after long-term inactivity.

Douches oculaires d’urgence : les règles de distance et de température à respecter

While lockout-tagout is a primary control measure, secondary safety systems like emergency eyewash stations and showers are critical lines of defense. Their effectiveness, however, depends entirely on strict adherence to installation and maintenance standards. A station that is too far, delivers water at the wrong temperature, or fails to activate is a useless fixture. In Quebec, these requirements are not mere suggestions; they are codified in the Regulation respecting occupational health and safety (RSST). A safety manager must ensure every station on their site is fully compliant.

The two most critical and easily audited parameters are access time and water temperature. Quebec’s RSST Division XXXVIII mandates a maximum 10-second travel time from the location of a potential chemical splash hazard to the eyewash station. This typically translates to a maximum distance of 55 feet (16.8 meters) along an unobstructed path. The path must be free of any barriers, stairs, or doors that swing towards the user. Equally important is the temperature of the flushing fluid. The water must be “tepid,” defined as being between 16°C and 38°C (60°F to 100°F). Water that is too cold can cause hypothermia and prevent the user from flushing for the required 15 minutes, while water that is too hot can exacerbate a chemical injury to the eye.

Compliance requires a rigorous and documented inspection protocol. This is not a one-time setup but a continuous verification process:

• Weekly Activation: All stations must be activated for a minimum of three minutes every week. This flushes stagnant water from the lines, preventing bacterial growth (like Legionella) and verifies that flow is available.
• Temperature and Flow Log: During the weekly activation, the water temperature and flow pattern must be checked and recorded in a logbook. The flow must be gentle enough not to cause further injury.
• Annual Certified Inspection: An annual, comprehensive inspection conforming to the ANSI Z358.1 standard must be conducted and documented. All records must be maintained for a minimum of five years to be available for a CNESST audit.

These systems are a worker’s last chance to prevent a life-altering injury, and their readiness is a direct responsibility of the site’s safety management.

Test des soupapes de sûreté : comment éviter l’explosion de votre chauffe-eau ?

While isolation valves control process flow for maintenance, safety relief valves (soupapes de sûreté) provide the ultimate protection against catastrophic over-pressurization events, such as a BLEVE (Boiling Liquid Expanding Vapor Explosion) in a water heater or pressure vessel. A failed or seized relief valve is a ticking time bomb. Therefore, testing these devices is one of the most critical safety tasks in any facility. In Quebec, this is an area of dual jurisdiction between the CNESST, responsible for worker safety, and the Régie du bâtiment du Québec (RBQ), which governs pressure vessel installation and certification. Compliance requires satisfying both authorities.

The simple “try lever test” that many perform quarterly is only a basic check for mechanical freedom; it does not verify the valve’s set pressure (the pressure at which it actually opens). A full operational test, performed by a certified technician, is required to ensure the valve will function as designed in an emergency. The frequency of these tests and replacements is dictated by standards such as CSA B51, which is adopted into Quebec regulation. For example, for many common vessels, the standards shall have a maximum servicing interval of 10 years, with more frequent operational tests required in between.

A compliant testing and maintenance program, as required by both RBQ and CNESST, must be meticulously documented and should include:

• Monthly: A visual inspection of the valve, its discharge piping (which must be unobstructed and routed to a safe location), and for any signs of corrosion or leakage.
• Quarterly: A try lever test, performed with appropriate PPE, to ensure the valve is not seized. This should produce a robust burst of fluid.
• Annually: A full operational test conducted by a technician certified by Emploi-Québec for pressure systems. This verifies the set pressure.
• Every 5-10 Years: Depending on the service and regulations, the valve must be replaced or sent for factory recertification.

As HSB, an organization recognized by the RBQ for performing inspections, notes, periodic inspections and certifications are mandatory to comply with current regulations. Any failure during testing must be reported immediately to both the RBQ and CNESST, as it represents a failure of both the equipment and the safety program.

Ensuring the mechanical integrity and proper specification of every valve in your facility is the only way to transform your lockout-tagout program from a procedural formality into a life-saving reality. To assess and upgrade your current systems to meet these stringent Quebec standards, the next logical step is to partner with experts in machine safety and compliance.
